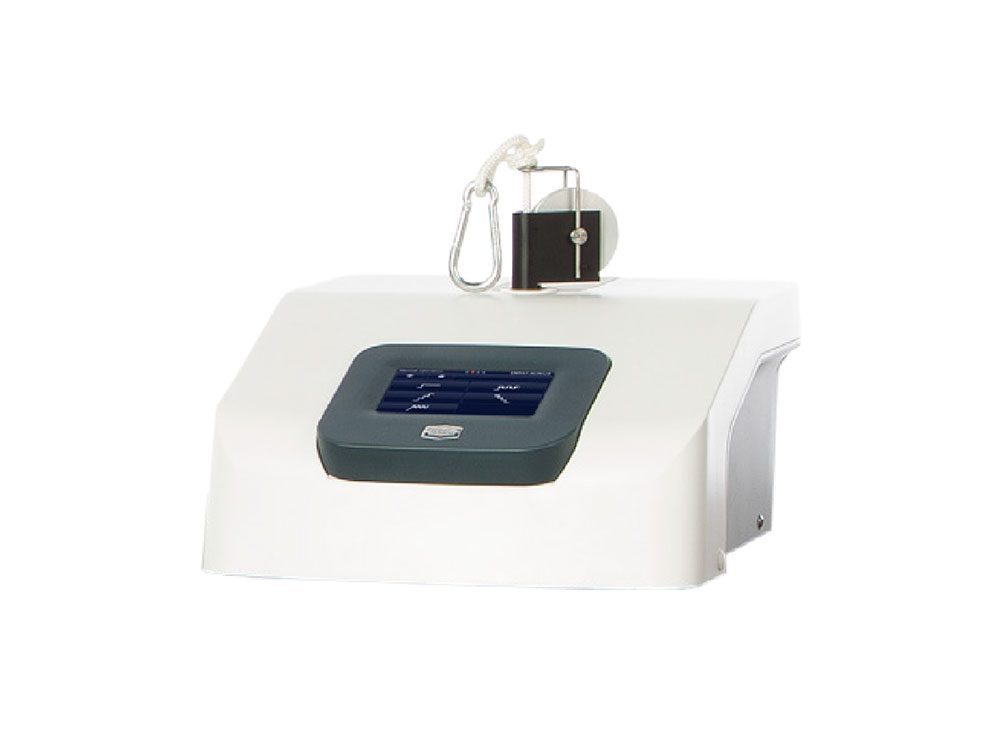

ELTRAC 471

TRACTION

ELTRAC 471

Therapy mode: Static, Intermittent, Pro- and Regressive, circular

Pulling force: 15-900 N / 1.5 – 90 kg / 3.4 – 202 Lbs

Pulling force / basic force holding time: 1 sec. – 1 hour (1 second intervals)

Repetitions (intermittent and cyclic): 1-100

Step holding time (pro- and regressive): 1 sec. – 5 minutes (1 second intervals)

Steps (pro- and regressive): 1-25

Speed (changing traction force): 1 – 50 N / sec. (1 N range)

0.1 – 5.0 kg / sec.

0.2 – 11.2 Lbs / sec.

Treatment time: 1 sec. – 150 minutes

Programmable favorites: 100+

Clinical protocols: Yes (3)

Sequential programming: Yes (up to 5 therapies)

Safety control for above pulling force: 200 N / 20 kg / 45.2 Lbs

Touch screen: 4.3 inch, full color, capacitive

Mains voltage: 100-240 V (50/60 Hz)

Max. power consumption: 50 VA

Dimensions: 30 x 34 x 22 cm

Weight: 10 kg
