COMBINED ELECTROTHERAPY ULTRASOUND
COMBİ-200

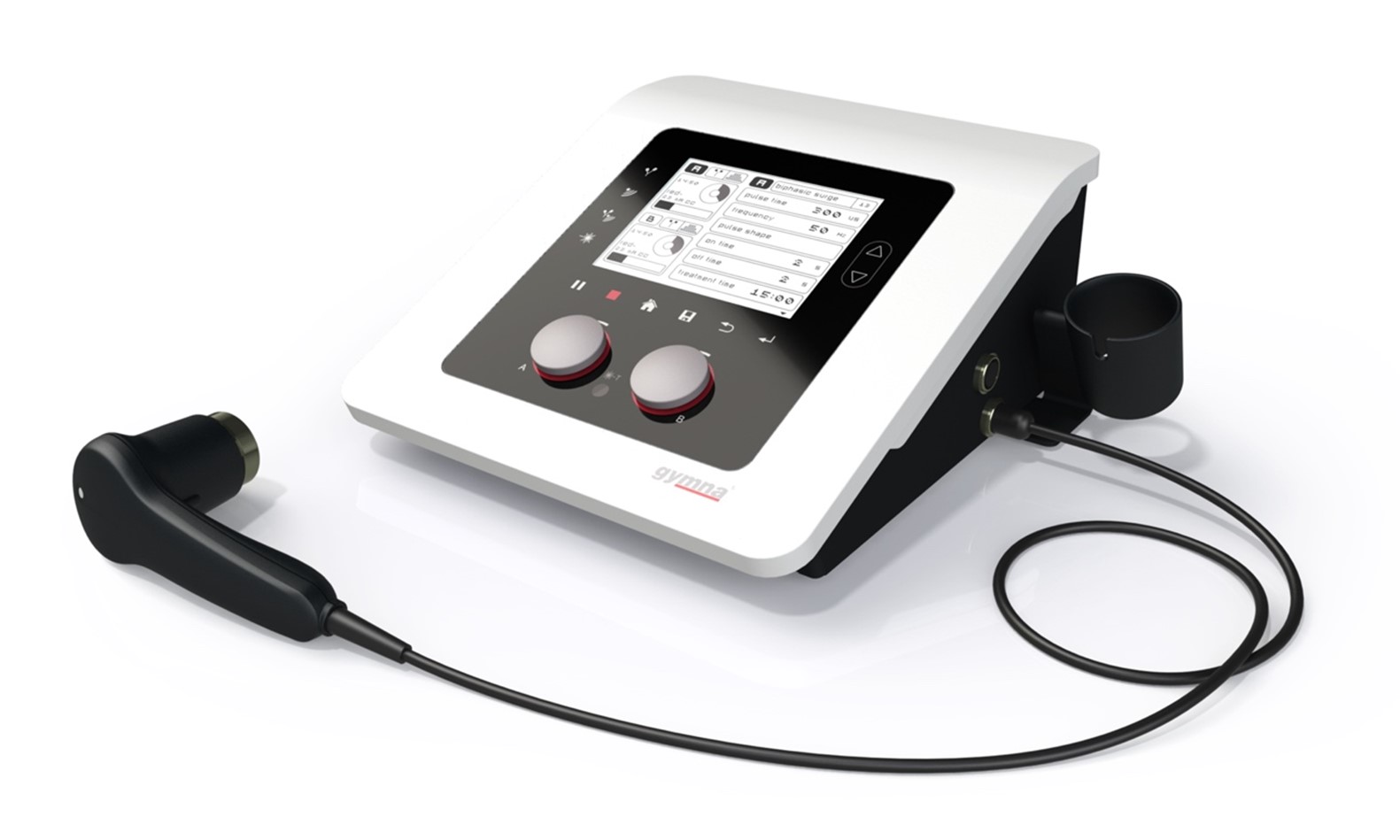

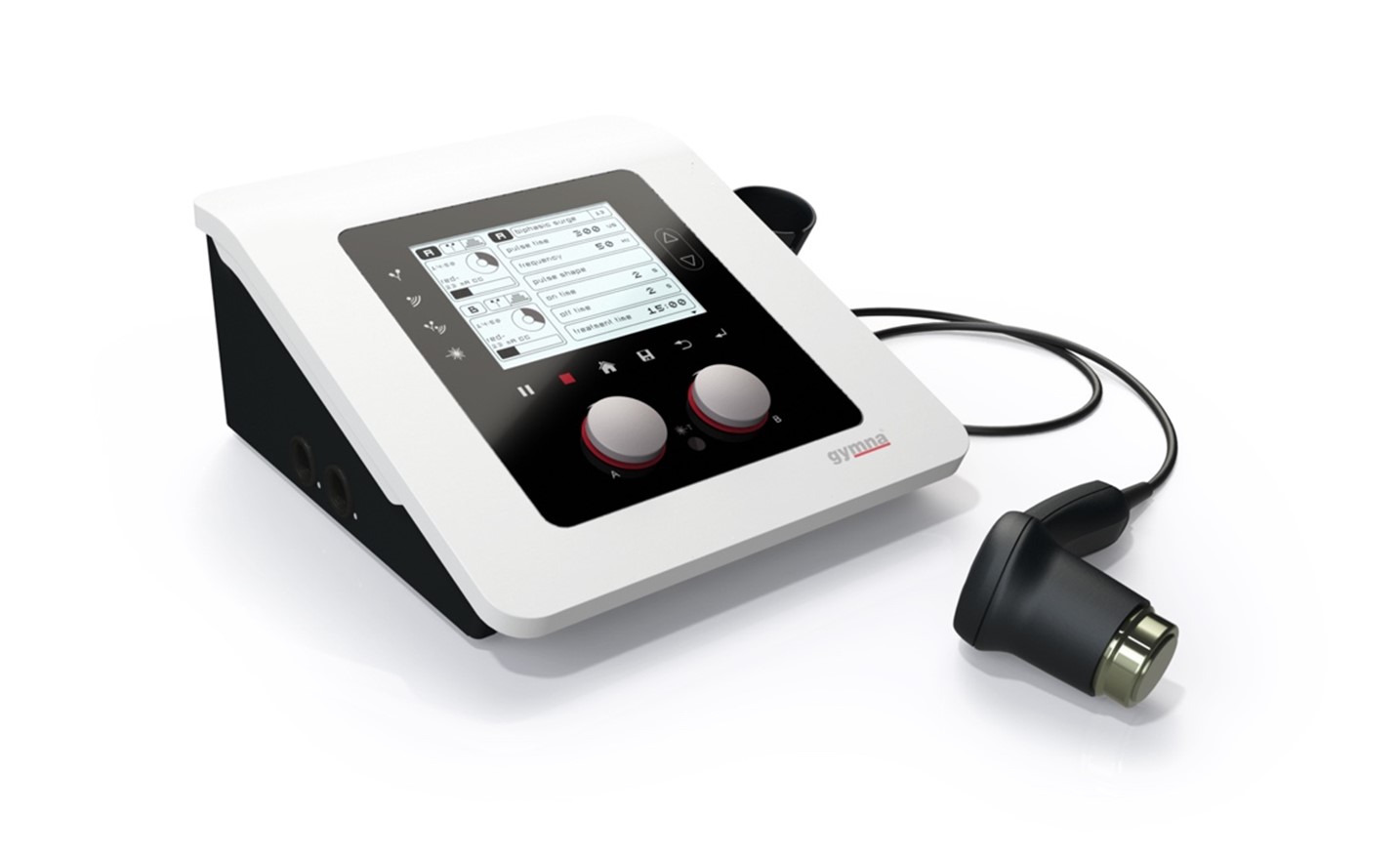

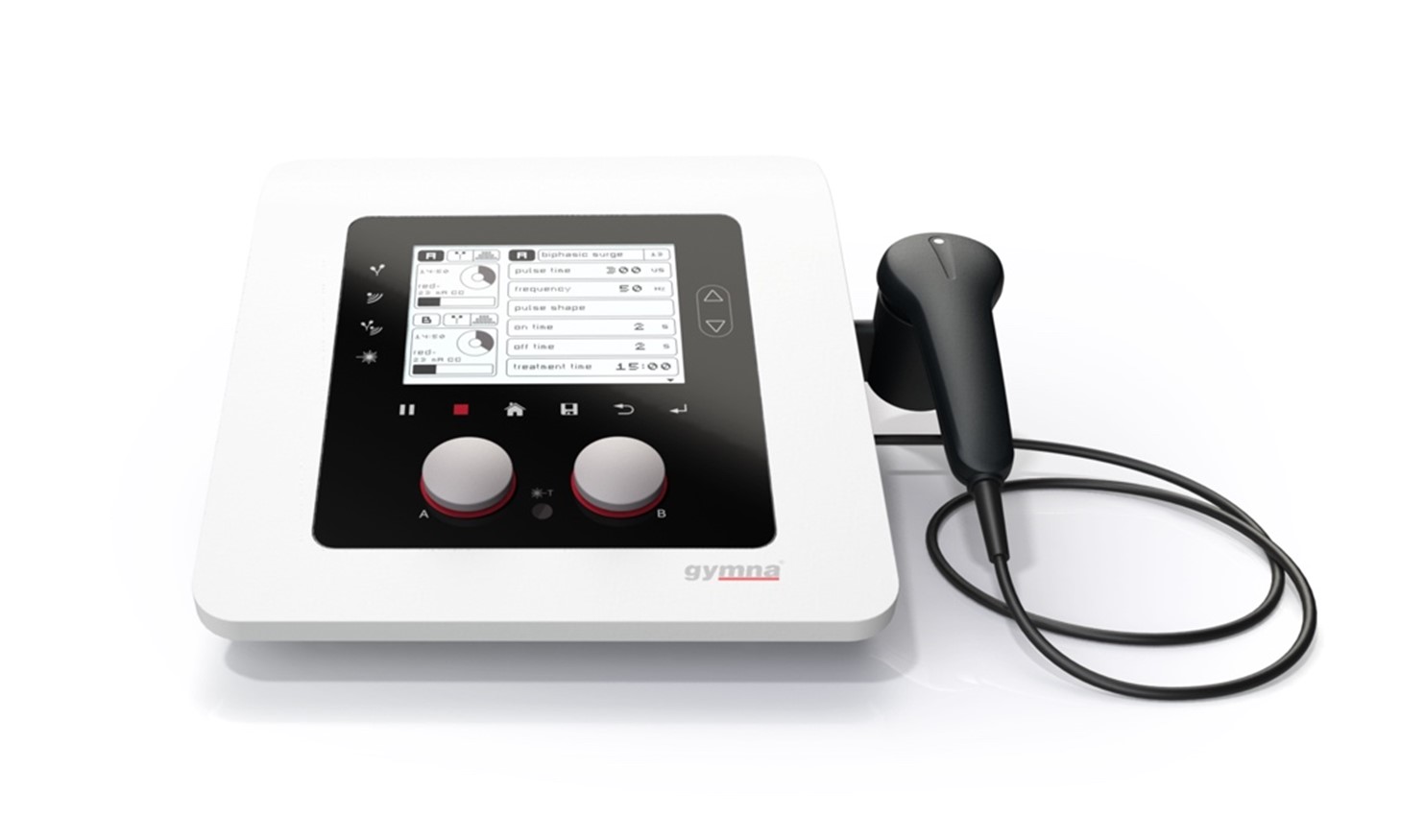

Combi 200 is a portable, touch screen device with 2 independent channels. It provides fingertip control for various types of electrotherapy current, ultrasound, combination and simultaneous treatment. It is equipped with electrotherapy protocols for pain control and muscle stimulation.
- Touch screen navigation
- Monochrome LCD
- 2 separate density control; fast and safe
- Direct therapy keys for easy access
- Evidence-based protocols for all treatments

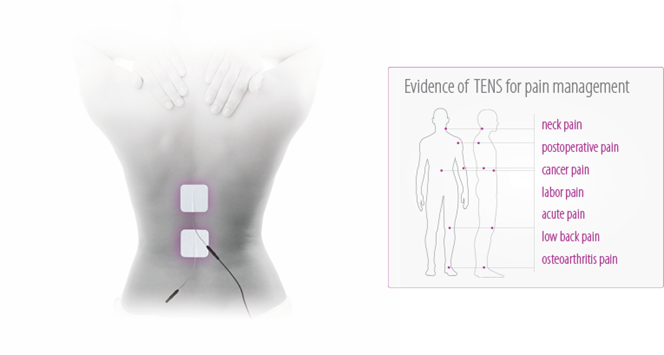

- Placement of pictures on the body
- Diagnostic S/D curve
- Faster, better, more precise pain relief
- The latest TENS protocols information enables a wider array of installations
- Highly improved precision of parameter management enables better and more comprehensive treatment
- Optimal treatment targeting
- Languages : 12
- Mains voltages: 100-240-VAC, 50/60 Hz +/- 10
- Operation with power on: 85 VA
- Dimensions (w x h x d): 268 x 124 x 295 mm
- Weight: approx. 4kg
- Safety : Class I
- Insulation : Type BF
- MDD 93/42/EEC
Therapies
- Electrotherapy, 2 and 4 poles, 2 channels fully independent
- S-D curve diagnostic programmes
- Ultrasound treatment
- Simultaneous treatment (2 different indications are treated)
- Using electro and ultrasound therapy at the same time
- Combination therapy (simultaneous treatment of one injury)
- Using a combination of electro and ultrasound therapy
Ultrasound
- Multi-frequency head (1 and 3 MHz), 4 cm²
- Continuous and pulsed mode (10-20-30-40-50-100%)
- Acoustic and visual contact controlled led
- 2 ultrasound output connectors
Functionalities:
- Objectives: 143
- Indications 207
- Default therapy programmes: 30
- Diagnosis 12
- Free memory: 50

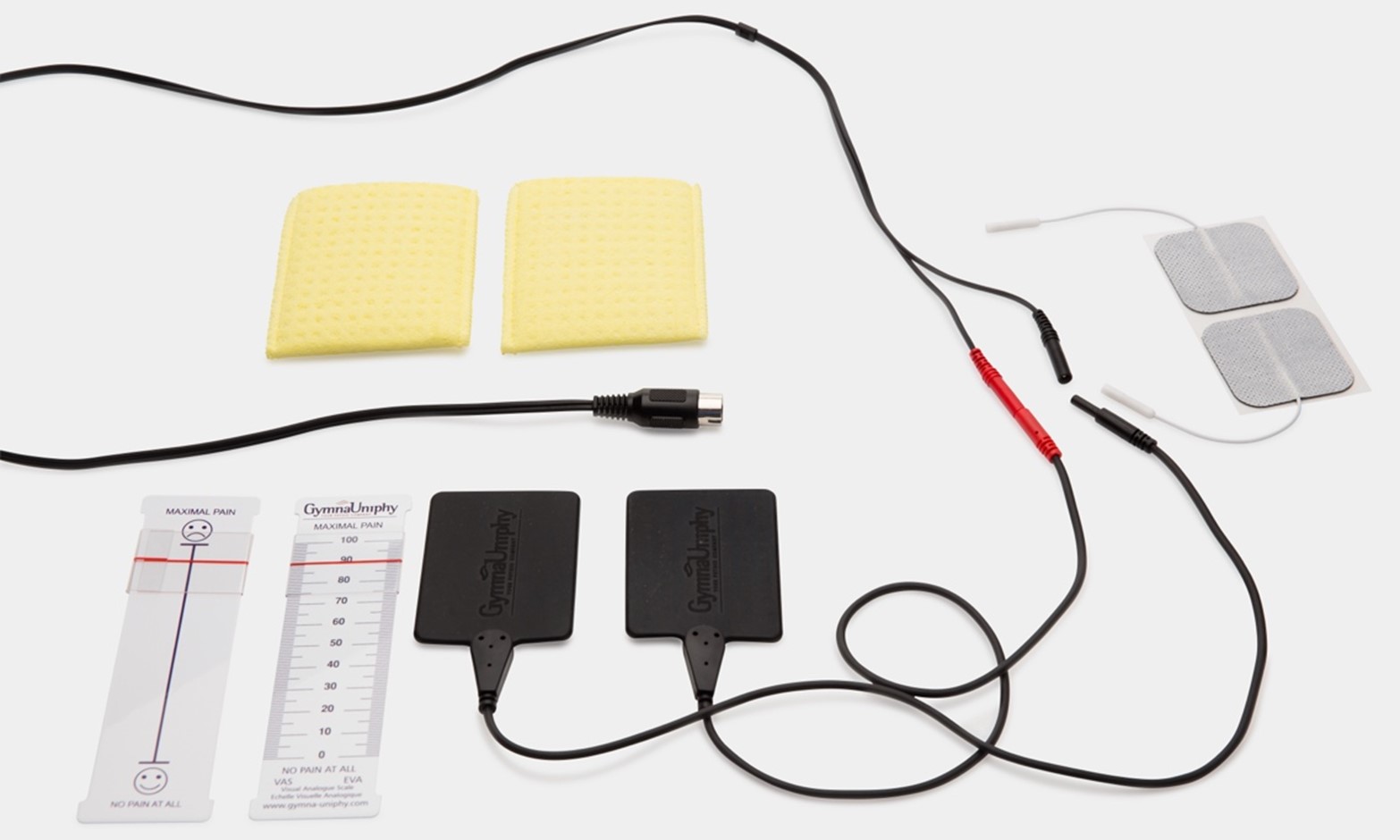

2 mm 2-pole patient cable
Rubber electrodes, 6 x 8 cm 2 mm
Treatment head 1&3MHz, 4cm²
Electrode Sponge 6×8 Cm
Gymna Contact Jel 500ml
Velcro Tape 5 x 60 cm
